amep.plot.linear_mappable

amep.plot.linear_mappable(cmap: str | Colormap | None, vmin: float, vmax: float, cscale: str = 'lin') → _ScalarMappable

Generate a scalar mappable colormap.

Used to color lines according to some value v between vmin and vmax with color=sm.to_rgba(v).

Parameters:

• cmap (str or mpl.colors.Colormap or None) – Colormap object or name of the colormap. If None, the default colormap is used as specified in the used style sheet.

• vmin (float) – Minimum value.

• vmax (float) – Maximum value.

• cscale (str, optional) – Color scale. Use ‘lin’ for a linear scale and ‘log’ for a logarithmic scale. The default is ‘lin’.

Returns:

sm – Object that maps a float to an rgba value.

Return type:

mpl.cm.ScalarMappable

Examples

>>> import amep
>>> import numpy as np
>>> x = np.linspace(0,10,100)
>>> z = np.linspace(0,2,20)
>>> sm = amep.plot.linear_mappable('viridis', 0, 2)
>>> fig, axs = amep.plot.new()
>>> for i in range(len(z)):
...     axs.plot(x, x+i, c=sm.to_rgba(z[i]), marker=''
... )
>>> cax = amep.plot.add_colorbar(fig, axs, sm, label=r'$z$')
>>> axs.set_xlabel(r'$x$')
>>> axs.set_ylabel(r'$y$')

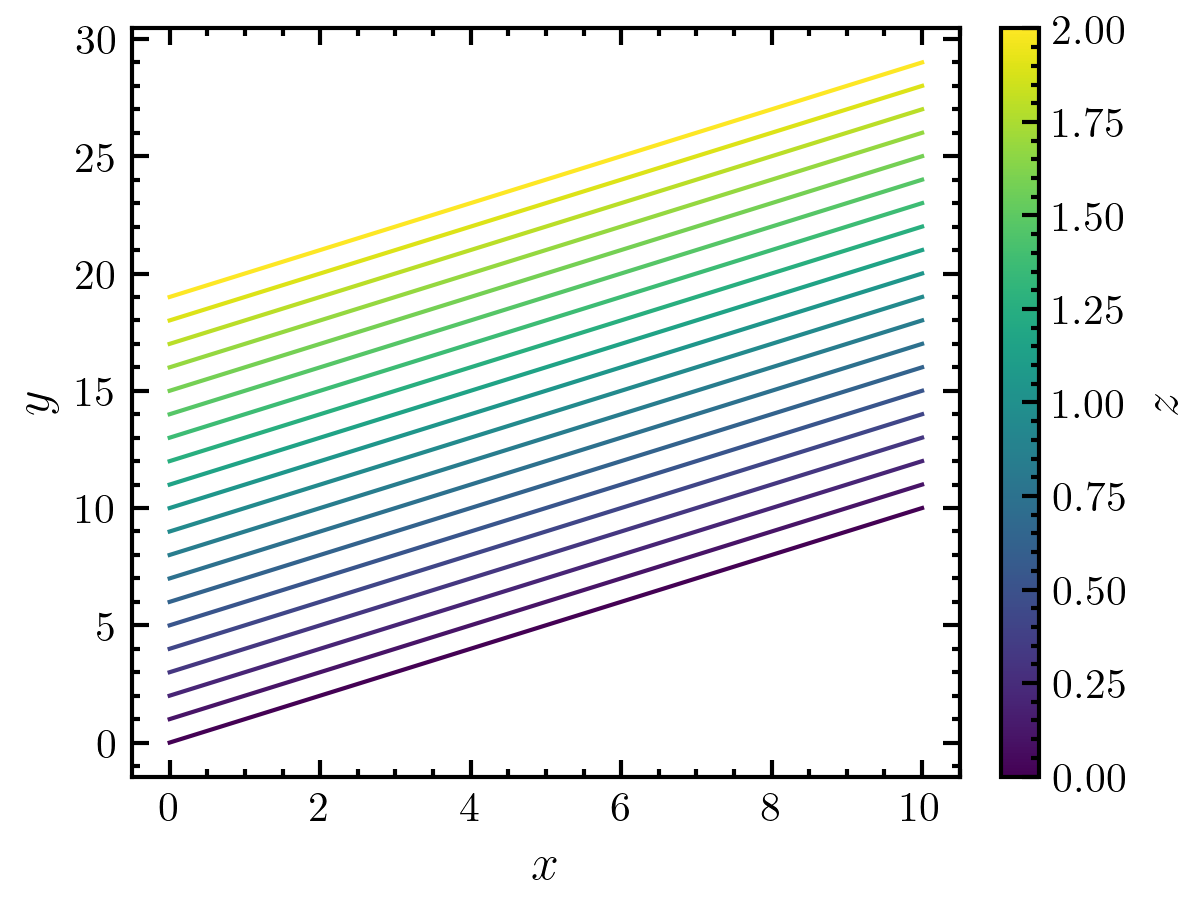

>>> fig.savefig('./figures/plot/plot-linear_mappable.png')
>>>
